SeqMix

SequenceMix™

An eight channel expandable switched mixer controlled by a rotating shift register pattern.

Each switch channel has an individual output with the switch status controlled by an illuminated pushbutton. The pushbuttons form a variable length (1-8) shift register which may be shifted in either direction by either an analogue or MIDI clock or addressed by a control voltage. The pushbuttons may be set manually or by MIDI Note On messages.

In its simplest application SequenceMix may be used as an 8 step sequencer, or 2x 4 steps, but with a little patching it becomes something much more sophisticated. Two or more SequenceMixes expand the possibilities to include slaving, ganging, nesting and longer patterns.



SequenceMix
SequenceMix ET.



Features

  • Internal +5Vdc CV reference normalled to all channel inputs
  • Level attenuator on each channel input
  • Individual switched outputs and three precision summed outputs, 1-4, 5-8 and 1-8
  • Pitch accurate switching, no signal loss through switches
  • Status shown and set by illuminated pushbuttons
  • Analogue CV/Clock input
  • Step Clock output
  • Shift Input and Output for expansion
  • N:1 and 1:N routing
  • Analogue Clock may be divided by 1 to 8
  • MIDI Clock may be divided from sixteenth to half notes
  • MIDI Start, Stop and Continue
  • MIDI Note control of switches


Buy Now

SequenceMix ET

£565.00

+ VAT (in UK) + p & p

In EU VAT will be charged by the courier



Built to order 4-6 weeks
Shipping weight: 1.2 kg.



SequenceMix EJ

£650.00

+ VAT (im UK) + p & p

In EU VAT will be charged by the courier



Built to order 4-6 weeks
Shipping weight: 1.2 kg.




Prices

SequenceMix has balanced or unbalanced compatible inputs and outputs and is available with bantam(TT) jacks or mini-jacks. Mini-jacks limit connections to unbalanced only whereas bantam jacks keep all options open with adapter cables.

Moulded bantam to 3.5mm adapter cables are available for £2-50 each if purchased with a module.


Ex. VAT
(Inc. VAT in UK)
SequenceMix 2892ET
(3U/26HP with Bantam TT jacks)
£565 (£678)
SequenceMix 2892EJ
(3U/26HP with mini-jacks)
£650 (£780)
Custom configurations poa
Contact us to order

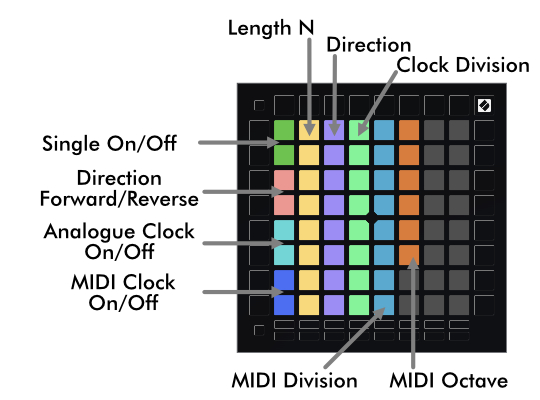

Controls

All pushbuttons have a double action. Pressing quickly reverses the current state, pressing and holding forces that state on and others off.
When the green mode pushbuttons are held the red 1 to 8 pushbuttons may be used to change settings.



Single

When set only one switch is allowed on at a time. Setting one switch clears the others and MIDI Notes have a Highest Note action.

When clear multiple switches may be on.

When held the red pushbuttons show or set the shift register length (N).

Direction

When set the normal direction (1 to 8) is reversed (8 to 1)

When held the red pushbuttons show or set the direction mode:

  • 1 Forward
  • 2 Reverse
  • 3 Alternate Cycles
  • 4 2x Cycles Forward : 1x Cycle Reverse
  • 5 3x Cycles Forward : 1x Cycle Reverse
  • 6 2x Cycles Forward : 2x Cycles Reverse
  • 7 3x Cycles Forward : 3x Cycles Reverse
  • 8 4x Cycles Forward : 4x Cycles Reverse
The last three allow two, three or four SequenceMixes to Alternate along the combined length.

Clocked

When set the CV/Clock input functions as an analogue clock which may be divided.

When clear the CV/Clock input functions as a control voltage addressing the step number which is added to the Position knob setting.

When held the red pushbuttons show or set the clock divider 1 to 8.

When held with Direction the red pushbuttons show or set the Preset pattern loaded on MIDI Start.

MIDI

When set enables MIDI reception.

When held the red pushbuttons set the octave that the switches are mapped to. The other green buttons show or set MIDI note and clock control.

When held with Clocked the red pushbuttons show or set the MIDI clock divider from sixteenth to half notes.

When held with Single the red pushbuttons 1-4 show or set the MIDI channel (in binary).

Control I/O

Shift In

If >1.6V an On state is clocked into the shift register on the next clock. This is normalled from Shift Out to create a loop, but may be patched from another SequenceMix or other Gate sources.

Shift Out

A 5V Gate signal of the same state as the Nth Switch in forwards or Switch 1 in reverse.

Step Clock Out

A 5V Trigger signal whenever the register is shifted.

CV/Clock In

In CV mode a ±5V CV sets the amount of rotation added to the Position knob.
In Clocked Mode a rising edge >3.3V clocks the register, subject to division.

Optional Controls


Custom option panels.

Range

An 8-pin header allows selection of the reference voltage in 1V steps. This may be preset or connected to a rotary switch.

MIDI In

A 3-pin header allows connection to a standard DIN MIDI connector.

MIDI Out

A 3-pin header allows connection to a standard DIN MIDI connector or direct connection to another SequenceMix MIDI Input for slaving.



You cannot have enough SequenceMixes…
